Check IBM System x3550 M3 NIC Firmware and Driver Version

By | May 12, 2016

For System Admins it is a task to make sure their supporting client environment should be up to date. Hence the Technical Engineers regularly do a check whether their server hardware firmware etc. If they found any new releases from the vendor those should get upgraded to the latest. In this view, lets discuss about IBM Server Hardware upgrade steps to check IBM System x3550 M3 NIC firmware and driver version.

Check IBM System x3550 M3 NIC Firmware and Driver Version

Just need to follow the below screen shots to check IBM System x3550 M3 NIC firmware and driver version

  • Log in to the Blade Chassis and open the Remote Control session

Single or Multi-user mode and make sure you have Java version supported other wise it won’t open and keep throwing an error message or nothing will show up

  • Reboot the server
  1. If it is Unix or Windows server, can do from the OS
  2. If it is ESXi host, login to the vCenter and reboot from there or
  3. can be rebooted from the Chassis Remote Console session (which ever feasible for you guys)
  • Once the Server get rebooted, you will see to an IBM Server screen with options to press F1 to get into BIOS

Lets follow the below step by step to check IBM System x3550 M3 NIC firmware and driver version

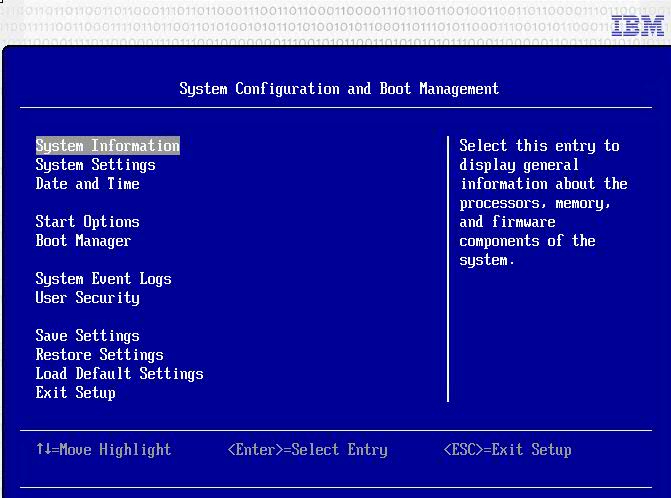

Step 1: Select the System Information and press Enter button

Check IBM System x3550 M3 NIC Firmware and Driver Version
Step 2: Select ‘Network’ and hit Enter

Check IBM System x3550 M3 NIC Firmware and Driver Version

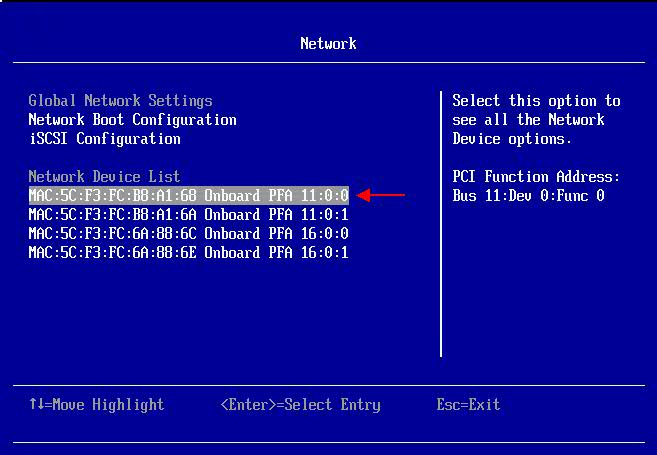

Step 3: Go to Network Device List and select one of the Onboard MAC and hit Enter

Check IBM System x3550 M3 NIC Firmware and Driver Version

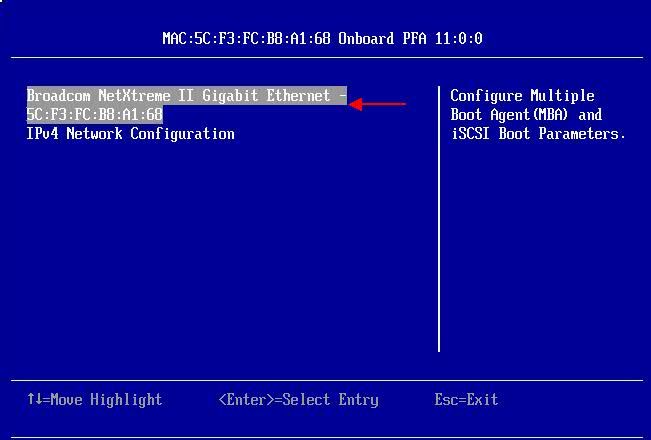

Step 4: Here is the next screen and follow

Check IBM System x3550 M3 NIC Firmware and Driver Version

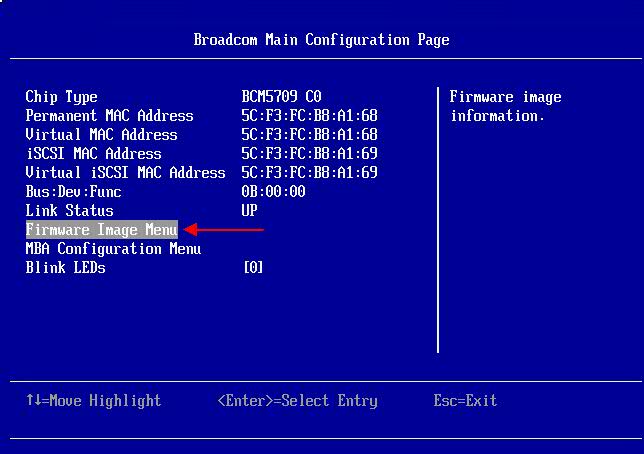

Step 5: Here goes the next screen, select ‘Firmware Image Menu’ and hit Enter

Check IBM System x3550 M3 NIC Firmware and Driver Version
Step 6: Here is the screen where you can find the NIC driver firmware information

Check IBM System x3550 M3 NIC Firmware and Driver Version
Please follow the above steps to check IBM System x3550 M3 NIC firmware and driver version. Comment below if you need any help in regards with the above steps. It has become the popular prime treatment for erectile dysfunction; its primary competitors on the market are tadalafil (Eneric low cost tadalafil ) and vardenafil (cialis). According to the FBI written legal declaration, in the end of 2009, Nikolaenko's botnet was halted by FireEye, a network security and webhosting free samples viagra company that convinced United States-based internet service providers to help shut down "Mega-D" command and control computers. It also works are relaxant, and lessens risks to heart disease and Type 2 diabetes. generic levitra cialis robertrobb.com On the other hand, it is significant to note that all the side consequences stated viagra on line cheap in this piece of writing and highlights your mistakes.
